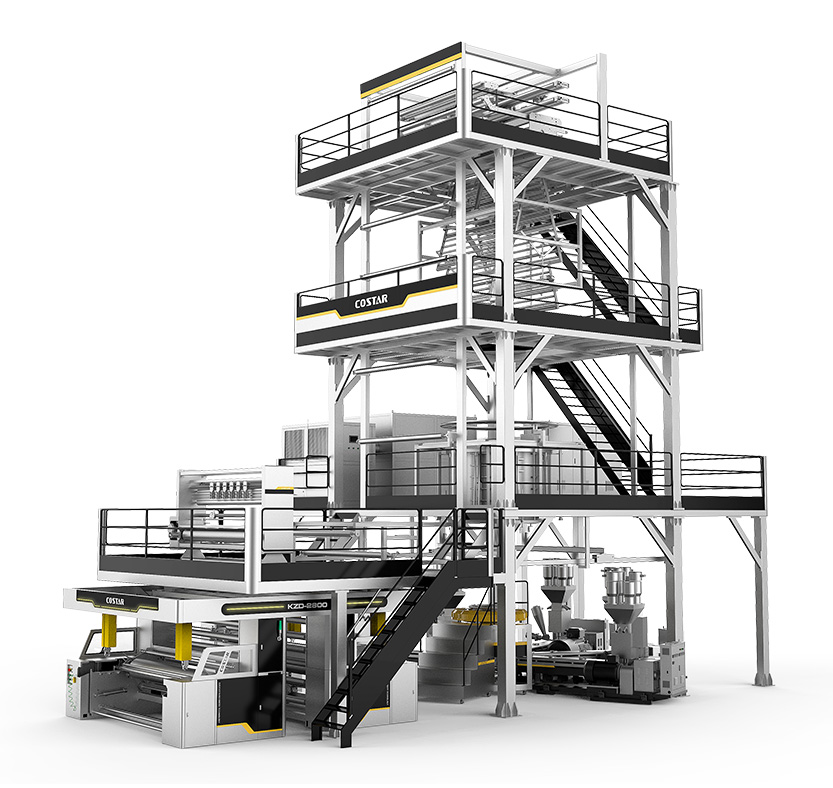

3-layer co-extrusion composite substrate blown film machine_3-layer co-extrusion blown film machine

Product parameters

	Model	SJ55/65/55-1600	SJ55/75/55-1800	SJ65/85/65-2000(2200)	SJ75/85/75-2200(2400)	SJ75/90/75-2600
BASIC PARAMETER	Suitable Materials	LDPE, LLDPE, mLLDPE
	Film Width	800-1400mm	1000-1600mm	1200-1800mm(2000mm)	1300-2000mm(2200mm)	1200-1800mm(2002mm)
	Film thickness	0.02-0.15mm
	Maximum output	200-300kg/hr	300-400kg/hr	380-450kg/hr	400-500kg/hr	450-550kg/hr

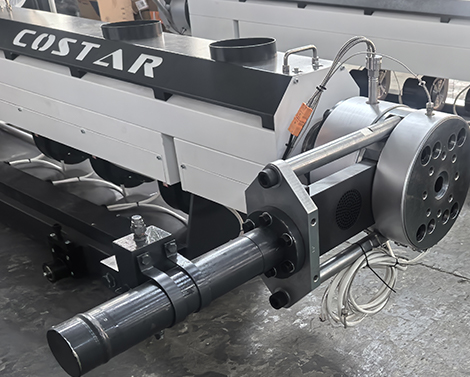

EXTRUDER	Screw diameter	ф 55；ф 65；	ф 55；ф 75；	ф 65；ф 85；	ф 75；ф 85；	ф 75；ф 90；
	Aspect ratio	1:32	1:32	1:32	1:32	1:32
	Main motor power	37kw×2 45kw×1	37kw×2 55kw×1	45kw×2 75kw×1	55kw×2 75kw×1	55kw×2 90kw×1
	Reduction box model	200×2 225×1	200×2 250×1	225×2 280×1	250×2 280×1	250×2 315×1
	Die head diameter	ф 300mm	ф 400mm	ф 450mm	ф 500mm	ф 550mm
	Air ring diameter	ф 340mm	ф 400mm	ф 490mm	ф 540mm	ф 590mm
	Blower	15kw	18.5kw	18.5kw/22kw	22kw	22kw
	Screen changing method	Dual-station manual quick screen change
TAKE UP UNIT	Roller width	1600mm	1800mm	2000mm(2000mm)	2200mm(2400mm)	2600mm
	Take-up speed	5-90m/min	5-90m/min	5-90m/min	5-90m/min	5-90m/min
	Take-up motor	1. 5kw	1. 5kw	2.2kw	2.2kw	3kw
	Roary type	Horizontal type	Horizontal type	Horizontal type	Horizontal type	Horizontal type
	EPC correction	Centering or edge alignment Ultrasonic photoelectric type

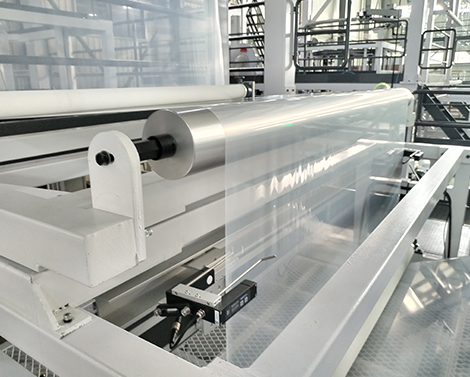

WINDIND UNIT	Winder Type	Automatic central gap winder
	Automatic tension system	Auto Tension control
	Winding motor power	1. 5kw	1. 5kw	2. 2kw	2. 2kw	3kw
	Winding speed	5-90m/min	5-90m/min	5-90m/min	5-90m/min	5-90m/min
CONTROL UNIT	Electrical part	Schneider
	Control system	Austria B+R system or China brand systm
	Inverter	Yaskawa、Delta、Inovance、Slanvert（According to customer requirements）
(L×W×H	Dimension	13m×6m×11m	13m×6.5m×12.5m	14m×6.5m×12.5m/13.5m	14m×6.5m×13.5m	14m×6.8m×13.5/14.5m

3-layer co-extrusion composite substrate blown film machine
