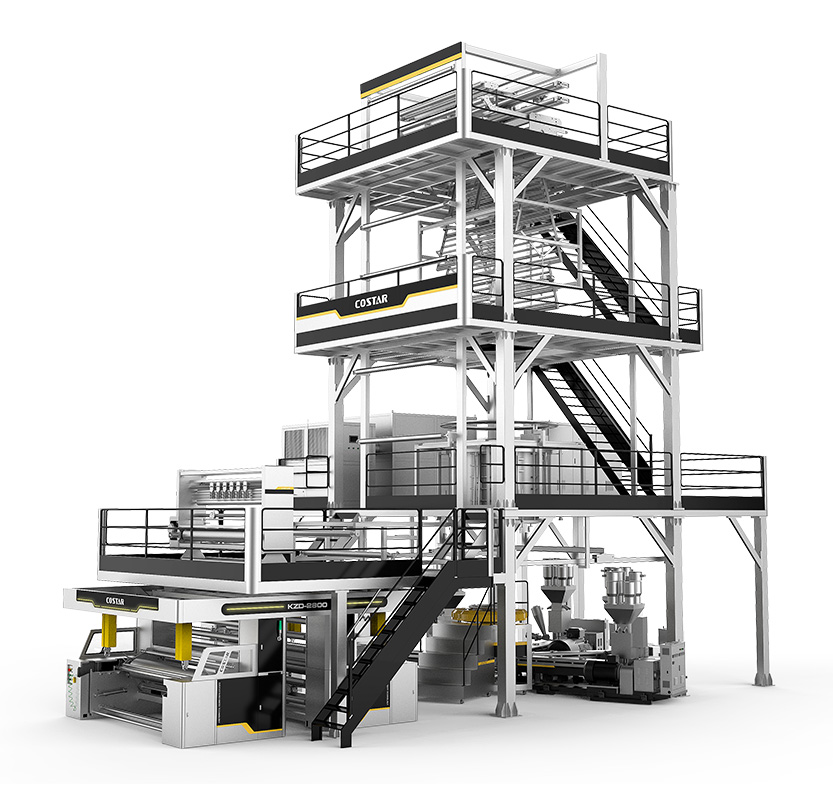

Eleven-layer co-extrusion machine produces ultra-high-performance films for high-barrier packaging, with unparalleled barrier, heat, UV, and impact resistance.
Product parameters
| Model | SJ65/55/55/55/55/55/55/55/55/55/55-2200 | |
| BASIC PARAMETER | Suitable Materials | LDPE, LLDPE, mLLDPE, PA, TIE |
| Film Width | 1400-1800mm | |
| Film thickness | 0.04-0.12mm | |
| Maximum output | 300-400kg/hr | |
| EXTRUDER | Screw diameter | ф 65；ф 55； |
| Aspect ratio | 1:32 | |
| Main motor power | 45kw×1 37kw×10 | |
| Reduction box model | 225×1 200×10 | |
| Die head diameter | ф 550mm |
|
| Blower | 22kw | |
| Screen changing method | Dual-station manual quick screen change | |
| TAKE UP UNIT | Roller width | 2200mm |
| Take-up speed | 5-90m/min | |
| Take-up motor | 2.2kw | |
| Roary type | Horizontal type |
